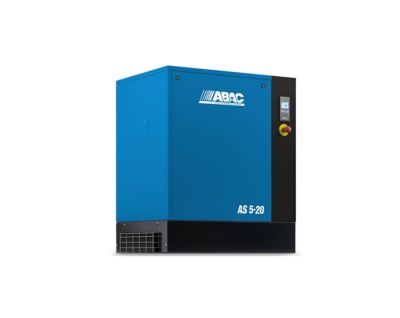

AS-B 5-20 HP

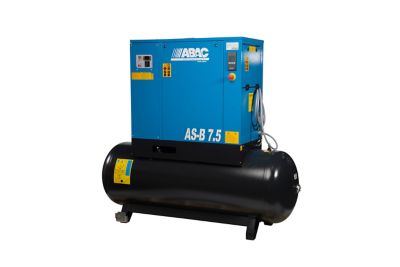

The AS-B 5-20 HP is the all-in-one compressor — Compressor, Receiver and Dryer. Key features include a fully integrated aluminum block, eco-friendly vertical oil separation technology and an energy-efficient motor. In addition to this, a state-of-the-art air-end design ensures limited air loss, high energy efficiency, longevity and limited noise and vibrations. Available in a variety of configurations — base mount, tank mount and tank mount with dryer — it allows for a unique and tailored application designed for your specific needs.

  • 3-in-1 System Including Compressor, Dryer and Receiver High
  • Performance with Low Energy Consumption
  • Low Oil Consumption and CO2 Emissions
  • Eco-friendly Vertical Oil Separation Technology
  • Intuitive Controller Allows Users to Effortlessly Optimize Operating Performance

latest technology

NEW AIREND

Latest innovation in airend technology incorporates cutting-edge technology for optimal efficiency, performance and reliability.

compact design

space saving

One of the smallest footprints on the market with a space-saving design, ideal for closer proximity to point-of-use applications.

EASE OF USE

Controller

The digital controller provides easy access to menus, for easy operation, programmed maintenance and reliable performance.

EFFICIENCY

Energy saving

Reduced CO2 Emissions: promotes energy efficiency and reduces carbon emissions, supporting environmental sustainability.

Products suitable for these applications

Technical table

Model Part Number Gallon HP PSI Power Supply (V/Ph) CFM* dB(A)** Weight (lbs.) LxWxH (in)
AS-5251BM 4152044115 BM 5 125 230/1/60 20.3 63 335 32X24X40
AS-5253BM 4152043883 BM 5 125 208-230-460/3/60 20.3 63 335 32X24X40
AS-5501BM 4152044116 BM 5 150 230/1/60 17.4 63 335 32X24X40
AS-5503BM 4152043884 BM 5 150 208-230-460/3/60 17.4 63 335 32X24X40
AS-5251TM 4152044119 71 5 125 230/1/60 20.3 63 485 56X23X55
AS-5253TM 4152043889 71 5 125 208-230-460/3/60 20.3 63 485 56X23X55
AS-5501TM 4152044120 71 5 150 230/1/60 17.4 63 485 56X23X55
AS-5503TM 4152043890 71 5 150 208-230-460/3/60 17.4 63 485 56X23X55
AS-5251TMD 4152044125 71 5 125 230/1/60 20.3 63 571 56X23X55
AS-5253TMD 4152043899 71 5 125 208-230-460/3/60 20.3 63 571 56X23X55
AS-5501TMD 4152043899 71 5 150 230/1/60 17.4 63 571 56X23X55
AS-5503TMD 4152043900 71 5 150 208-230-460/3/60 17.4 63 571 56X23X55



* Unit performance measured according to ISO1217, Annex C, CFM figures quoted at 109 PSI for 125 PSI Max units and 138 PSI for 150 PSI Max units.
** Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).

Technical table

Model Part Number Gallon HP PSI Power Supply (V/Ph) CFM* dB(A)** Weight (lbs.) LxWxH (in)
AS-7.5251BM 4152044117 BM 7.5 125 230/1/60 30.5 67 360 32X24X40
AS-7.5253BM 4152043885 BM 7.5 125 208-230-460/3/60 30.5 67 360 32X24X40
AS-7.5501BM 4152044118 BM 7.5 150 230/1/60 27.1 67 360 32X24X40
AS-7.5503BM 4152043886 BM 7.5 150 208-230-460/3/60 27.1 67 360 32X24X40
AS-7.5251TM 4152044121 71 7.5 125 230/1/60 30.5 67 507 63X23X57
AS-7.5253TM 4152043891 71 7.5 125 208-230-460/3/60 30.5 67 507 63X23X57
AS-7.5501TM 4152044122 71 7.5 150 230/1/60 27.1 67 507 63X23X57
AS-7.5503TM 4152043892 71 7.5 150 208-230-460/3/60 27.1 67 507 63X23X57
AS-7.5251TM 4152044123 132 7.5 125 230/1/60 30.5 67 655 76X24X63
AS-7.5253TM 4152043893 132 7.5 125 208-230-460/3/60 30.5 67 655 76X24X63
AS-7.5501TM 4152044124 132 7.5 150 230/1/60 27.1 67 655 76X24X63
AS-7.5503TM 4152043894 132 7.5 150 208-230-460/3/60 27.1 67 655 76X24X63
AS-7.5251TMD 4152044127 71 7.5 125 230/1/60 30.5 67 593 60X23X57
AS-7.5253TMD 4152043901 71 7.5 125 208-230-460/3/60 30.5 67 593 60X23X57
AS-7.5501TMD 4152044128 71 7.5 150 230/1/60 27.1 67 593 60X23X57
AS-7.5503TMD 4152043902 71 7.5 150 208-230-460/3/60 27.1 67 593 60X23X57
AS-7.5251TMD 4152044129 132 7.5 125 230/1/60 30.5 67 741 76X24X63
AS-7.5253TMD 4152043903 132 7.5 125 208-230-460/3/60 30.5 67 741 76X24X63
AS-7.5501TMD 4152044130 132 7.5 150 230/1/60 27.1 67 741 76X24X63
AS-7.5503TMD 4152043904 132 7.5 150 208-230-460/3/60 27.1 67 741 76X24X63



* Unit performance measured according to ISO1217, Annex C, CFM figures quoted at 109 PSI for 125 PSI Max units and 138 PSI for 150 PSI Max units.
** Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).

Technical table

Model Part Number Gallon HP PSI Power Supply (V/Ph) CFM* dB(A)** Weight (lbs.) LxWxH (in)
AS-10253BM 4152043887 BM 10 125 208-230-460/3/60 36.4 69 419 32X24X40
AS-10503BM 4152043888 BM 10 150 208-230-460/3/60 34.1 69 419 32X24X40
AS-10253TM 4152043895 71 10 125 208-230-460/3/60 36.4 69 567 60X23X57
AS-10503TM 4152043896 71 10 150 208-230-460/3/60 34.1 69 567 60X23X57
AS-10253TM 4152043897 132 10 125 208-230-460/3/60 36.4 69 714 76X24X63
AS-10503TM 4152043898 132 10 150 208-230-460/3/60 34.1 69 714 76X24X63
AS-10253TMD 4152043905 71 10 125 208-230-460/3/60 36.4 69 653 60X27X57
AS-10503TMD 4152043906 71 10 150 208-230-460/3/60 34.1 69 653 60X27X57
AS-10253TMD 4152043907 132 10 125 208-230-460/3/60 36.4 69 800 76X24X63
AS-10503TMD 4152043908 132 10 150 208-230-460/3/60 34.1 69 800 76X24X63



*Unit performance measured according to ISO1217, AnnexC, CFM figures quoted for 10HP 109 PSI for 125 PSI Max units, for 10S-20HP CFM figures are quoted at free air delivery.
** Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).

Technical table

Model Part Number Gallon HP PSI Power Supply (V/Ph) CFM* dB(A)** Weight (lbs.) LxWxH (in)
AS-15253BM 4152043912 BM 15 125 208-230-460/3/60 52.1 69 478 37X28X40
AS-15503BM 4152043913 BM 15 150 208-230-460/3/60 46.4 69 478 37X28X40
AS-15753BM 4152043914 BM 15 175 208-230-460/3/60 41.7 69 478 37X28X40
AS-15253TM 4152043921 132 15 125 208-230-460/3/60 52.1 69 776 76X27X62
AS-15503TM 4152043922 132 15 150 208-230-460/3/60 46.4 69 776 76X27X62
AS-15753TM 4152043923 132 15 175 208-230-460/3/60 41.7 69 776 76X27X62
AS-15253TMD 4152043930 132 15 125 208-230-460/3/60 52.1 69 871 76X27X62
AS-15503TMD 4152043931 132 15 150 208-230-460/3/60 46.4 69 871 76X27X62
AS-15753TMD 4152043932 132 15 175 208-230-460/3/60 41.7 69 871 76X27X62



*Unit performance measured according to ISO1217, AnnexC, CFM figures quoted for 10HP 109 PSI for 125 PSI Max units, for 10S-20HP CFM figures are quoted at free air delivery.
** Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).

Technical table

Model Part Number Gallon HP PSI Power Supply (V/Ph) CFM* dB(A)** Weight (lbs.) LxWxH (in)
AS-20253BM 4152043915 BM 20 125 208-230-460/3/60 60.6 71 516 37X28X40
AS-20503BM 4152043916 BM 20 150 208-230-460/3/60 54 71 516 37X28X40
AS-20753BM 4152043917 BM 20 175 208-230-460/3/60 48.5 71 520 37X28X40
AS-20253TM 4152043924 132 20 125 208-230-460/3/60 60.6 71 813 76X27X62
AS-20503TM 4152043925 132 20 150 208-230-460/3/60 54 71 813 76X27X62
AS-20753TM 4152043926 132 20 175 208-230-460/3/60 48.5 71 818 76X27X62
AS-20253TMD 4152043933 132 20 125 208-230-460/3/60 60.6 71 908 76X27X62
AS-20503TMD 4152043934 132 20 150 208-230-460/3/60 54 71 908 76X27X62
AS-20753TMD 4152043935 132 20 175 208-230-460/3/60 48.5 71 913 76X27X62



*Unit performance measured according to ISO1217, AnnexC, CFM figures quoted for 10HP 109 PSI for 125 PSI Max units, for 10S-20HP CFM figures are quoted at free air delivery.
** Noise level measured according to ISO 2151:2004 using ISO 9614/2 (sound intensity method).
