APPLICATIONS

Extensive Use

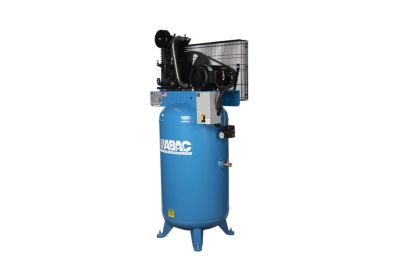

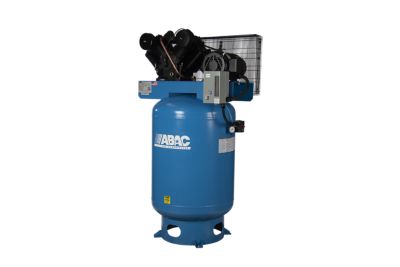

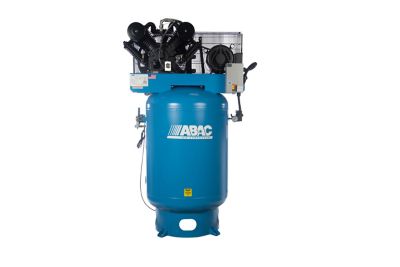

Simplex cast iron compressor is suitable for professional heavy‑duty applications from wood/metal workshops to auto body/repair shops.

high-end

PERFORMANCE

The technology of cast iron ensures outstanding durability and performance, even in the most demanding work environments.

Guarded Reliability

safety first

The fully enclosed belt guard and ASME tank & safety valves are essential safety features that provide critical protection in air compressor systems.

V-Shape Excellence

Strong Delivery

The 4-Cylinder V-Shape Pump boosts air output with its efficient V-shaped design, ensuring reliable and strong performance.

Products suitable for these applications

Assembled in USA banner

Technical Table

Model Part Number Gallon HP Power Supply (V/Ph) CFM @MAX PSI MAX PSI Weight (lbs.) LxWxH (in)
ABC5-2180V 2020041764 80V 5 230/1 16 175 580 24X36X72
ABC5-2380V 2020041766 80V 5 230/3 16 165 580 24X36X72
ABC5-4380V 2020041768 80V 5 460/3 16 175 580 24X36X72
ABC7-2180V 2020041772 80V 7.5 230/1 21 175 622 24X36X72
ABC7-2380V 2020041774 80V 7.5 230/3 21 175 622 24X36X72
ABC7-4380V 2020041776 80V 7.5 460/3 21 175 622 24X36X72
ABC7-2180V2 2020041799 80V 7.5 230/1 24 175 694 25X41X71
ABC7-2380V2 2020041801 80V 7.5 230/3 24 175 694 25X41X71
ABC7-4380V2 2020041803 80V 7.5 460/3 24 175 694 25X41X71
ABC10-23120V 2020041782 120V 10 230/3 32 175 765 30X41X74
ABC10-43120V 2020041786 120V 10 460/3 32 175 765 30X41X74
ABC10-23120H 2020041780 120H 10 230/3 32 175 728 27X74X50
ABC10-43120H 2020041784 120H 10 460/3 32 175 728 27X74X50
ABC5-2180VFFS 2020041765 80V 5 230/1 16 175 580 24X36X72
ABC5-2380VFF 2020041767 80V 5 230/3 16 175 580 24X36X72
ABC5-4380VFF 2020041769 80V 5 460/3 16 175 580 24X36X72
ABC7-2180VFF 2020041773 80V 7.5 230/1 21 175 622 24X36X72
ABC7-2380VFF 2020041775 80V 7.5 230/3 21 175 622 24X36X72
ABC7-4380VFF 2020041777 80V 7.5 460/3 21 175 622 24X36X72
ABC7-2180V2FF 2020041800 80V 7.5 230/1 24 175 694 25X41X71
ABC7-2380V2FF 2020041802 80V 7.5 230/3 24 175 694 25X41X71
ABC7-4380V2FF 2020041804 80V 7.5 460/3 24 175 694 25X41X71
ABC10-23120VFF 2020041783 120V 10 230/3 32 175 765 30X41X74
ABC10-43120VFF 2020041787 120V 10 460/3 32 175 765 30X41X74
ABC10-23120HFF 2020041781 120H 10 230/3 32 175 728 27X74X50
ABC10-43120HFF 2020041785 120H 10 460/3 32 175 728 27X74X50
ABAC Stationary Piston Brochure

ABAC Stationary Piston Brochure

ABAC Stationary Piston Brochure

Filename
ABAC Stationary Piston Brochure.pdf
Size
7 MB
Format
pdf
