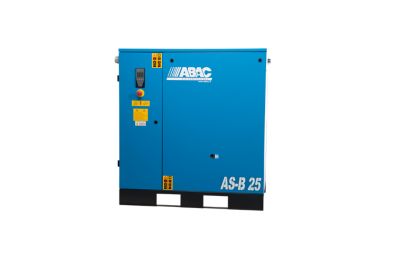

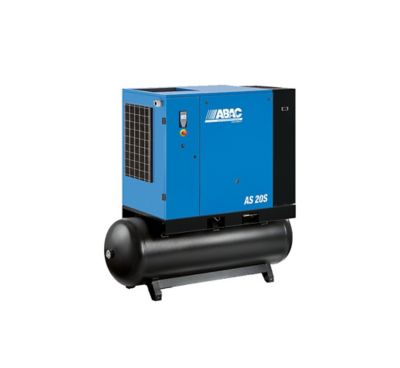

AS-B 20S-30 HP

The AS-B 20S-30 HP is the all-in-one compressor — Compressor, Receiver and Dryer. Key features include a fully integrated aluminum block, eco-friendly vertical oil separation technology and an energy-efficient motor. In addition to this, a state-of-the-art air-end design ensures limited air loss, high energy efficiency, longevity and limited noise and vibrations. The AS-B 20S-30 HP is suitable for demanding automotive and industrial applications needing reliable and continuous compressed air supply.

  • Eco-Friendly Vertical Oil Separation
  • Low Noise and Vibration Levels
  • Up to 10% Lower Carbon Footprint
  • Sturdy, Reliable, Compact Design
  • Fully Integrated Aluminum Block

Quiet Innovation

Sound Precision

With an innovative design, ABAC has achieved a remarkable reduction in noise and vibration, enhancing the work environment and longevity.

superior performance

productivity

Top-tier performance with reduced energy use, thanks to the advanced technology and design, ensuring a higher air output.

Efficient Output

Optimized

The Rotary screw technology delivers enormous benefits with both noise and air quality vastly improved, especially for smaller working environments.

eco-friendly operations

Sustainable Tech

The vertical oil separation technology, the energy-saving motor and air-end design that minimizes air loss ensure eco-friendly operations.

Products suitable for these applications

Technical table

Model Part Number Gallon HP PSI Power Supply
(V/Ph)		 CFM* dB(A) Weight
(lbs.)		 L x W x H
(in)
AS-20S253BM 4152028455 BM 20S 125 208-230-460/3/60 81.9 67 690 44x31x49
AS-20S503BM 4152028456 BM 20S 150 208-230-460/3/60 78 67 690 44x31x49
AS-20S253BMD 4152028461 BM 20S 125 208-230-460/3/60 81.9 67 798 55x31x49
AS-20S503BMD 4152028462 BM 20S 150 208-230-460/3/60 78 67 798 55x31x49
AS-20S253TMD 4152028467 132 20S 125 208-230-460/3/60 81.9 67 1297 75x31x72
AS-20S503TMD 4152028468 132 20S 150 208-230-460/3/60 78 67 1297 75x31x72

Technical table

Model Part Number Gallon HP PSI Power Supply
(V/Ph)		 CFM* dB(A) Weight
(lbs.)		 L x W x H
(in)
AS-25253BM 4152028457 BM 25 125 208-230-460/3/60 98.9 69 723 44x31x49
AS-25503BM 4152028458 BM 25 150 208-230-460/3/60 92.2 69 723 44x31x49
AS-25253BMD 4152028463 BM 25 125 208-230-460/3/60 98.9 69 831 55x31x49
AS-25503BMD 4152028464 BM 25 150 208-230-460/3/60 92.2 69 831 55x31x49
AS-25253TMD 4152028469 132 25 125 208-230-460/3/60 98.9 69 1330 75x31x72
AS-25503TMD 4152028470 132 25 150 208-230-460/3/60 92.2 69 1330 75x31x72

Technical table

Model Part Number Gallon HP PSI Power Supply
(V/Ph)		 CFM* dB(A) Weight
(lbs.)		 L x W x H
(in)
AS-30253BM 4152028459 BM 30 125   208-230-460/3/60  114.1 70 759  44x31x49
AS-30503BM 4152028460 BM 30 150 208-230-460/3/60 103.1 70 759  44x31x49
AS-30253BMD 4152028465 BM 30 125 208-230-460/3/60 114.1 70 867 55x31x49
AS-30503BMD 4152028466 BM 30 150 208-230-460/3/60 103.1 70 867 55x31x49
AS-30253TMD 4152028471 132 30 125 208-230-460/3/60 114.1 70 1365 75x31x72
AS-30503TMD 4152028472 132 30 150 208-230-460/3/60 103.1 70 1365 75x31x72
