Acoustic performance

Ultra-low noise

Sound levels as low as 53 dB(A) allow installation close to workspaces without requiring a dedicated compressor room.

Oil-free technology

Class 0 oil-free

Scroll technology guarantees 100% oil-free compressed air, certified to ISO 8573-1 Class 0 standards.

Operating efficiency

High efficiency

No unload power consumption and IE3 motors support efficient operation and reduced energy use.

Monitoring

Smart control

Touchscreen controller and monitoring features provide alarms, service scheduling and performance visibility.

Technical Table

Model Max. working pressure Free Air Delivery Motor power Noise level
  bar m³/h l/s cfm kW hp dB(A)
SPR 2 8 10.4 2.9 6.1 1.5 2 53
SPR 2 10 6.8 1.9 4.0 1.5 2 53
SPR 3 8 15.1 4.2 8.9 2.2 3 55
SPR 3 10 12.2 3.4 7.2 2.2 3 55
SPR 5 8 24.1 6.7 14.2 3.7 5 57
SPR 5 10 21.2 5.9 12.5 3.7 5 57
SPR 8 8 35.3 9.8 20.8 5.5 7.5 59
SPR 8 10 27.4 7.6 16.1 5.5 7.5 59

Machines are available in 50 and 60Hz.

Model Max. working pressure Free Air Delivery Motor power Noise level
  bar m³/h l/s cfm kW hp dB(A)
SPR 10 8 48.0 13.4 28.4 2 x 3.7 2 x 6 63
SPR 10 10 40.8 11.4 24.2 2 x 3.7 2 x 6 63
SPR 15 8 73.2 20.3 43.0 2 x 5.5 2 x 7.5 63
SPR 15 10 54.0 15.0 31.8 2 x 5.5 2 x 7.5 63
SPR 20 8 96.0 26.4 55.9 4 x 3.7 4 x 5 63
SPR 20 10 82.8 23.0 48.7 4 x 3.7 4 x 5 63
SPR 22 8 111.6 31.0 65.7 3 x 5.5 3 x 7.5 64
SPR 22 10 85.2 23.7 50.2 3 x 5.5 3 x 7.5 64
SPR 30 8 147.0 40.8 86.5 4 x 5.5 4 x 7.5 65
SPR 30 10 108.0 30.0 63.6 4 x 5.5 4 x 7.5 65

Machines are available in 50 and 60Hz.

Model Max. working pressure Free Air Delivery Motor power Noise level
  bar m³/h l/s cfm kW hp dB(A)
SPRx 3 8 15 4.0 8.9 2.2 3 70
SPRx 3 10 12 3.4 7.2 2.2 3 70
SPRx 5 8 24 6.7 14.2 3.7 5 72
SPRx 5 10 21 5.9 12.5 3.7 5 72
SPRx 8 8 35.4 9.8 20.8 5.5 7.5 74
SPRx 8 10 27.6 7.6 16.1 5.5 7.5 74

Machines are available in 50Hz.

Products suitable for

Food and Beverage

Food and beverage, Men working in food production plant_for references

Medical

Modern science laboratory with cabinets, research desks, computers and other analytic equipment_edited for references
SPR(x) 2-30

SPR(x) 2-30

SPR(x) 2-30

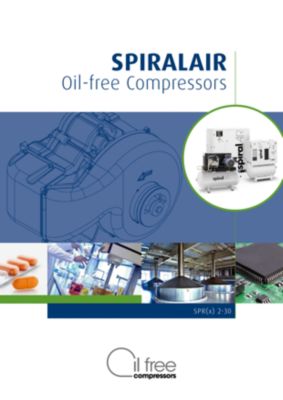

Filename
Spiralair Sales Leaflet EN Spreads.pdf
Size
1 MB
Format
pdf
