APPLICATIONS

DIY to PRO

The ideal solution for advanced amateurs, professionals, garages and workshops.

OPERATIONS

BALANCED

Good balance between performance, reliability, basic user comfort and ease of use.

components

RELIABLE

Newly designed pumps and belts provide more efficiency, less noise and temperature.

HIGH QUALITY SOLUTIONS

WIDE RANGE

Variable power sizes and tank capabilities to matching your needs.

Products suitable for these applications

Popular EXtensive Products

extensive

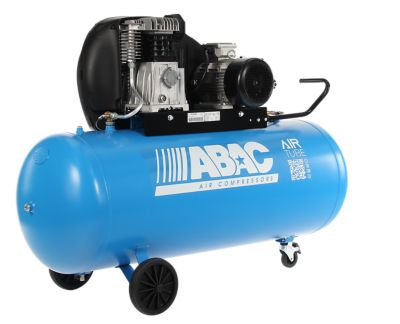

EXT A39B 270 CT4

Single stage air compressor, 270 l tank, 4 hp, 486 l/min and maximum pressure 10 bar.

Contact us
EXT A39B 270 CT4 EXceed Piston Compressors Abac

extensive

EXT A39B 150 CT4

Single stage air compressor, 150 l tank, 4 hp, 486 l/min and maximum pressure 10 bar.

explore product
EXT A29B 150 CM3 EXceed Piston Compressors Abac

extensive

EXT A29B 90 CM3

Single stage air compressor, 90 l tank, 3 hp, 320 l/min and maximum pressure 10 bar.

Contact us
EXT A29B 90 CM3 EXceed Piston Compressors Abac

extensive

EXT A39B 200 CM3

Single stage air compressor, 200 l tank, 3 hp, 393 l/min and maximum pressure 10 bar.

explore product
EXT A39B 200 CM3 EXceed Piston Compressors Abac

extensive

EXT A29B 50 CM2

Single stage air compressor, 50 l tank, 2 hp, 255 l/min and maximum pressure 10 bar.

Contact us
EXT A29B 50 CM3 EXceed Piston Compressors Abac
ABAC Exceed range

ABAC Exceed range

ABAC Exceed range

Filename
ABAC-Exceed-en-web.pdf
Size
3 MB
Format
pdf

Technical Table

Part number
 Model Type Tank size HP KW Bar/PSI Volt/Phase/Hz l/min L x W x H
(mm)		 WEIGTH
(kg)
4116028200 EXT A29B 90 CM2 Single Stage 90l 2 1,5 10/145 230/1/50 255 983x502x911 52
4116028215 EXT A29B 90 CM2 UK Single Stage 90l 2 1,5 10/145 230/1/50 255 983x502x911 55
4116028210 EXT A29B 90 CM2 60Hz Single Stage 90l 2 1,5 10/145 230/1/60 255 983x502x911 55
4116028206 EXT A29B 90 CT2 Single Stage 90l 2 1,5 10/145 400/3/50 255 982x502x917 52
4116028000 EXT A29B 50 CM2 Single Stage 50l 2 1,5 10/145 230/1/50 255 871x420x817 40
4116028008 EXT A29B 50 CM2 60Hz Single Stage 50l 2 1,5 10/145 230/1/60 255 871x420x817 45
4116028003 EXT A29B 50 CT2 Single Stage 50l 2 1,5 10/145 400/3/50 255 870x420x827 52
4116028508 EXT A29B 150 CM2 60Hz Single Stage 150l 2 1,5 10/145 230/1/60 255 1364x500x971 72
4116028683 EXT A29B 150 CM2 Single Stage 150l 2 1,5 10/145 230/1/50 255 1362x500x971 80
4116028217 EXT A29B 90 CM3 UK Single Stage 90l 3 2,2 10/145 230/1/50 320 983x502x911 65
4116028201 EXT A29B 90 CM3 Single Stage 90l 3 2,2 10/145 230/1/50 320 983x502x911 65
4116028205 EXT A29B 90 CT3 Single Stage 90l 3 2,2 10/145 400/3/50 320 982x502x917 63
4116028009 EXT A29B 50 CM3 Single Stage 50l 3 2,2 10/145 230/1/50 320 870x420x827 54
4116028010 EXT A29B 50 CT3 Single Stage 50l 3 2,2 10/145 400/3/50 320 870x420x827 54
4116028706 EXT A39B 270 CM3 Single Stage 270l 3 2,2 10/145 230/1/50 393 1495x588x1067 138
4116028709 EXT A39B 270 CM3 60Hz Single Stage 270l 3 2,2 10/145 230/1/60 393 1495x588x1067 138
4116028552 EXT A39B 200 CM3 Single Stage 200l 3 2,2 10/145 230/1/50 393 1413x572x1008 129
4116028557 EXT A39B 200 CM3 UK Single Stage 200l 3 2,2 10/145 230/1/50 393 1413x572x1008 129
4116028567 EXT A29B 200 CM3 60Hz Single Stage 200l 3 2,2 10/145 230/1/60 320 1413x572x1004 87
4116028681 EXT A29B 200 CM3 Single Stage 200l 3 2,2 10/145 230/1/50 320 1411x572x1003 102
4116028682 EXT A29B 200 CT3 Single Stage 200l 3 2,2 10/145 400/3/50 320 1411x572x1003 90
4116028562 EXT A29B 200 CM2 60HZ Single Stage 200l 3 2,2 10/145 230/1/60 320 1413x572x1004 87
4116028502 EXT A29B 150 CM3 Single Stage 150l 3 2,2 10/145 230/1/50 320 1362x500x971 80
4116028505 EXT A29B 150 CT3 Single Stage 150l 3 2,2 10/145 400/3/50 320 1362x500x971 83
4116028509 EXT A29B 150 CM3 UK Single Stage 150l 3 2,2 10/145 230/1/50 320 1362x500x971 80
4116028549 EXT A39B 150 CM3 Single Stage 150l 3 2,2 10/145 230/1/50 393 1364x500x975 72
4116028211 EXT A39B 90 CT4 Single Stage 90l 4 3 10/145 400/3/50 486 983x502x921 67
4116028701 EXT A39B 270 CT4 Single Stage 270l 4 3 10/145 400/3/50 486 1495x588x1067 138
4116028708 EXT A39B 270 CM4 60Hz Single Stage 270l 4 3 10/145 230/1/60 486 1495x581x1067 116
4116028554 EXT A39B 200 CT4 Single Stage 200l 4 3 10/145 400/3/50 486 1413x572x1008 129
4116028510 EXT A39B 150 CT4 Single Stage 150l 4 3 10/145 400/3/50 486 1364x500x975 75
4116028703 EXT A49B 270 CT5,5 Two Stage 270l 5,5 4,1 11/159.5 400/3/50 595 1495x588x1082 124
4116028559 EXT A49B 200 CT5,5 Two Stage 200l 5,5 4,1 11/159.5 400/3/50 595 1413x572x1023 125
