ADVANCED DESIGN

EFFICIENCY

Engineered for maximum output with minimal energy use, the SPRINT range delivers optimal airflow and reduces running costs without compromising performance.

SMART INTERFACE

CONTROL

Equipped with an intuitive touch display and advanced monitoring, it allows real-time adjustments, peak efficiency, and seamless day-to-day operation.

ROBUST BUILD

RELIABILITY

Constructed with premium components and proven engineering, the SPRINT range ensures long-term reliability even in demanding operating conditions.

QUICK ACCESS

SERVICE

A layout designed for single-person maintenance, with easy access to filters, coolers, and key components to minimise downtime and simplify upkeep.

Products suitable for these applications

SPINN D2,2 Abac

ABAC SPRINT-ALF-ARD Range

ABAC SPRINT-ALF-ARD Range
Filename
ABAC SPRINT-ALF-ARD Range.pdf
Size
5 MB
Format
pdf

Smart Technical Advantages

Model Working pressure Motor power Capacity Noise level Weight Connection Dimensions
Mpa HP kW l/s CFM m3/min dB(A) KG G L x W x H (mm)
SPRINT 4 1.0 5.5 4 8 16 0.46 68 130 G1/2'' 650x650x890
SPRINT 5.5 1.0 7.5 5.5 11 23 0.66 68 160 G1/2" 650x650x890
SPRINT 7.5 1.0 10 7.5 14 30 0.84 68 167 G1/2" 650x650x890
SPRINT 11 1.0 15 11 23 48 1.37 72 230 G3/4" 850x650x930
SPRINT 15 1.0 20 15 30 64 1.8 73 230 G3/4" 850x650x930
SPRINT 18.5 1.0 25 18.5 41 87 2.4 72 330 G1" 710x740x1275
SPRINT 22 1.0 30 22 46 98 2.8 72 380 G1" 710x840x1275
SPRINT 30 1.0 40 30 67 141 4.0 75 570 G1 1/2" 860x850x1345
SPRINT 37 1.0 50 37 86 182 5.2 75 575 G1 1/2" 860x850x1345
SPRINT 45 1.0 60 45 100 211 6.0 78 580 G1 1/2" 1248x1025x1405
SPRINT 55 1.0 75 55 127 268 7.6 77 937 G2" 1475x1100x1650

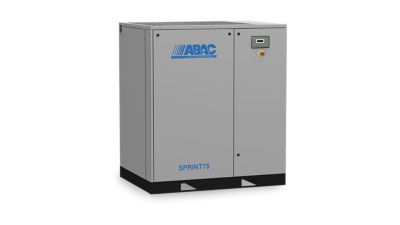

SPRINT 75 1.0 100 75 175 371 10.5 78 967 G2" 1475x1100x1650



Power supply: 400V. Please contact local sales team for more information
Unit performance measured according to ISO1217. Annex C. latest edition and ISO 2151

Innovative Technology Advantages

Model Working pressure Motor power Capacity Noise level Weight Connection Dimensions
Mpa HP kW l/s CFM m3/min dB(A) KG G L x W x H (mm)
SPRINT7.5 PM 1.0 10 7.5 5-15 10-32 0.29-0.92 68 150 R 3/4'' 905x740x1011
SPRINT11 PM 1.0 15 11 7-23 15-49 0.42-1.40 69 210 R 3/4'' 905x740x1011
SPRINT15 PM 1.0 20 15 10-28 21-59 0.6-1.7 70 210 R 3/4'' 905x740x1011
SPRINT18.5 PM 1.0 25 18.5 17-43 35-91 1.0-2.6 70 280 R 1'' 1005x895x1279
SPRINT22 PM 1.0 30 22 17-52 35-109 1.0-3.1 70 290 R 1'' 1005x895x1279
SPRINT30 PM 1.0 40 30 17-70 36-148 1.0-4.2 72 320 R 1 1/2'' 1235x1025x1416
SPRINT37 PM 1.0 50 37 30-90 63-190 1.8-5.4 71 400 R 1 1/2'' 1235x1025x1416
SPRINT45 PM 1.0 60 45 30-108 63-228 1.8-6.5 73 410 R 1 1/2'' 1235x1025x1416



Power supply: 400V. Please contact local sales team for more information
Unit performance measured according to ISO1217. Annex C. latest edition and ISO 2151

1 Station Total Solution Advantage

Model Working pressure Motor power Capacity Noise level Weight Connection Dimensions
Mpa HP kW l/s CFM m3/min dB(A) KG G L x W x H (mm)

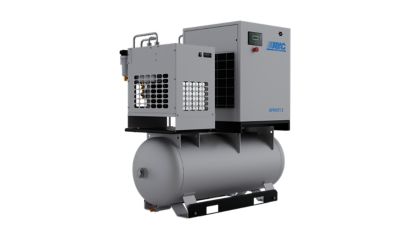

SPRINT7.5 TMDD 1.0 10 7.5 14 30 0.85 68 360 3/4’’ 1577x772x1491
SPRINT11 TMDD 1.0 15 11 23 48 1.37 72 430 1” 1577x680x1430
SPRINT15 TMDD 1.0 20 15 30 64 1.8 73 430 1” 1577x680x1430



Power supply: 400V. Please contact local sales team for more information
Unit performance measured according to ISO1217. Annex C. latest edition and ISO 2151
